Zero-Defect Strategy in Assembly: From Concept to System

Almost every plant has a zero-defect strategy. It’s displayed on a poster in the production hall, is included in the quality policy, and is cited in the management review. Yet on Friday afternoon, a unit with a missing screw leaves the production line. It was rarely the worker’s fault. The system allowed him to skip that step. This is where it becomes clear whether a zero-defect strategy is more than just a statement of intent.

When there is a gap between expectations and results in quality work, it is rarely a lack of motivation. More often than not, the process is designed in a way that allows for errors. A zero-defect strategy based on attention, experience, and diligence works as long as nothing gets in the way. In a high-variety assembly environment with small batch sizes, shift changes, and fluctuating staffing levels, something inevitably gets in the way.

This is evident not so much in the number of defects as in their distribution. Errors tend to cluster at stations with a high number of variants, during the night shift, and on special orders. This is no coincidence: at these points, the process leaves decisions up to people without providing guidance. As long as this remains the case, errors will be managed rather than prevented.

This article shows how a zero-defect strategy in assembly can be transformed into a system that actually prevents defects. It addresses the four objectives that can be used to steer a zero-defect program, the five error classes in manual assembly, and the technical principles that can be used to lock out four of them. In addition, there is a four-level maturity model, the standard requirements from IATF 16949 and VDI/VDE 2862, and a four-phase implementation sequence.

What a Zero-Defect Strategy Is and Why It Fails in Practice

A zero-defect strategy is a quality approach that prevents defects at their source. Traditional quality assurance has the same goal but takes a different approach: it checks whether a product is in good condition. A zero-defect strategy designs the process so that a defective product cannot be produced in the first place.

The term originates from postwar quality theory and has been refined over decades through methods such as poka-yoke, FMEA, and statistical process control. In industrial practice, this has resulted in a clear division of labor: Design prevents potential errors, process planning safeguards critical steps, and manufacturing documents that the safeguards have been effective.

It is at this third stage that the chain breaks in many plants, because the safeguards exist only on paper. The control plan specifies the critical characteristic, the work instruction describes the inspection, and the process description requires documentation. No one knows whether the worker actually performed the inspection during the production cycle until someone asks. By then, the part is already with the customer.

A zero-defect strategy therefore rarely fails due to a lack of methodology. It fails because of the gap between the planned process and the process that is actually carried out. As long as this gap exists, every number in the quality report is an estimate.

Why a More Rigorous Final Inspection Isn’t Enough

Many zero-defect programs start by tightening the final inspection. This increases the detection rate and lowers the complaint rate, but it does nothing to change how defects arise. After twelve to eighteen months, the key performance indicator stagnates, inspection costs have risen, and the program loses management support. Prevention belongs on the production floor.

What goals a zero-defect strategy pursues in assembly

The objectives of a zero-defect strategy are often reduced to the defect rate. This is insufficient for guiding a program, because a declining defect rate can also result from stricter inspection. There are four objectives that can be reliably established and measured independently of one another.

• Reduce defect occurrence. The percentage of orders that pass through a station without any deviation events. This metric is not affected by the stringency of inspections.
• Shift the point of detection upstream. The percentage of deviations detected at the station where they occur, rather than during final inspection, at the customer’s receiving area, or in the field.
• Reduce variation between shifts and locations. A zero-defect strategy that works only during the morning shift depends on individual people rather than the process itself.
• Establish traceability without extra effort. The time from the request for information to the complete process history of a single part. This time frame provides the most reliable indication of the quality of the database.

The four objectives are interrelated, but not in a linear fashion. A plant can significantly reduce the occurrence of defects and still stand out in an audit because of a lack of documentation. Conversely, there are plants with exemplary documentation and an unchanged defect rate. Anyone implementing a zero-defect program should therefore track all four metrics from the start, even if they are only working on one of them.

In assembly, there is an additional factor to consider. Unlike in machining or forming processes, quality here stems primarily from the sequence and completeness of actions and hardly at all from machine parameters. The greater lever for improvement is therefore the management of the process, not the control of a process window.

The five error categories that dominate manual assembly

Defect reports from assembly lines can be almost entirely categorized into five classes. This distinction has practical implications: Each class requires a different technical countermeasure, and three of the five can be completely eliminated—that is, made impossible in the process.

Error Map of Manual Assembly

Source: Classification based on CSP project experience in discrete manufacturing

A parameter error is the only class of error that an operator cannot detect. A torque value that is too low appears to be a correctly tightened bolt. In joining processes, a zero-defect strategy therefore fundamentally cannot work without data collection. Our analysis of fastening curves, patterns, and causes describes which patterns in fastening curves indicate which causes.

Furthermore, sequence and variant errors do not necessarily decrease with the worker’s experience. Experienced employees work faster and in a more automated manner, which increases the likelihood of overlooking an exceptional case. A zero-defect strategy that relies on training and experience therefore addresses only part of the problem.

Why Prevention Is Cost-Effective Only at the Source

Whether a zero-defect strategy pays off depends primarily on where a defect is detected. The “rule of ten” for defect costs states, as a rule of thumb, that the cost of a defect increases by a factor of about ten for each process stage at which it is detected later. The rule is an order of magnitude, not a precise calculation. It is sufficient for prioritizing measures.

Point of Detection and Scope for Action

Source: Rule of Tens for error costs, an established rule of thumb in quality management

In the last row, it’s worth taking a look at the third column. When a defect reaches the production floor, the precision of the containment determines the extent of the damage. A recall involving 40,000 vehicles—because the affected scope cannot be narrowed down to 900 units—is primarily a data problem.

A zero-defect strategy therefore works in two ways. It reduces the probability of occurrence, and it limits the extent of damage within the remaining residual risk. The second effect is often underestimated and depends solely on the quality of the recorded process data. That is why prevention and traceability belong in a single, integrated project.

How Supervisor Guidance in Assembly Prevents Errors Instead of Documenting Them

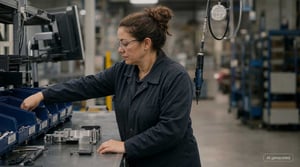

Worker guidance in assembly refers to the digital, step-by-step instruction of an employee through a specific work process, combined with the recording of each confirmation. The term is often used synonymously with “assembly assistance system.” We’ve described the fundamentals, benefits, and an implementation roadmap in our overview of digital operator guidance. Here, we’re focusing on a single question: Which feature of such a system prevents errors, and which merely generates a log?

The difference lies in the interlocking mechanism. A system that displays work steps and records confirmations improves documentation. A system that ties progress to a condition changes the outcome. Four operating principles underpin this.

Four Principles of Guided Assembly

1. Sequence Interlock

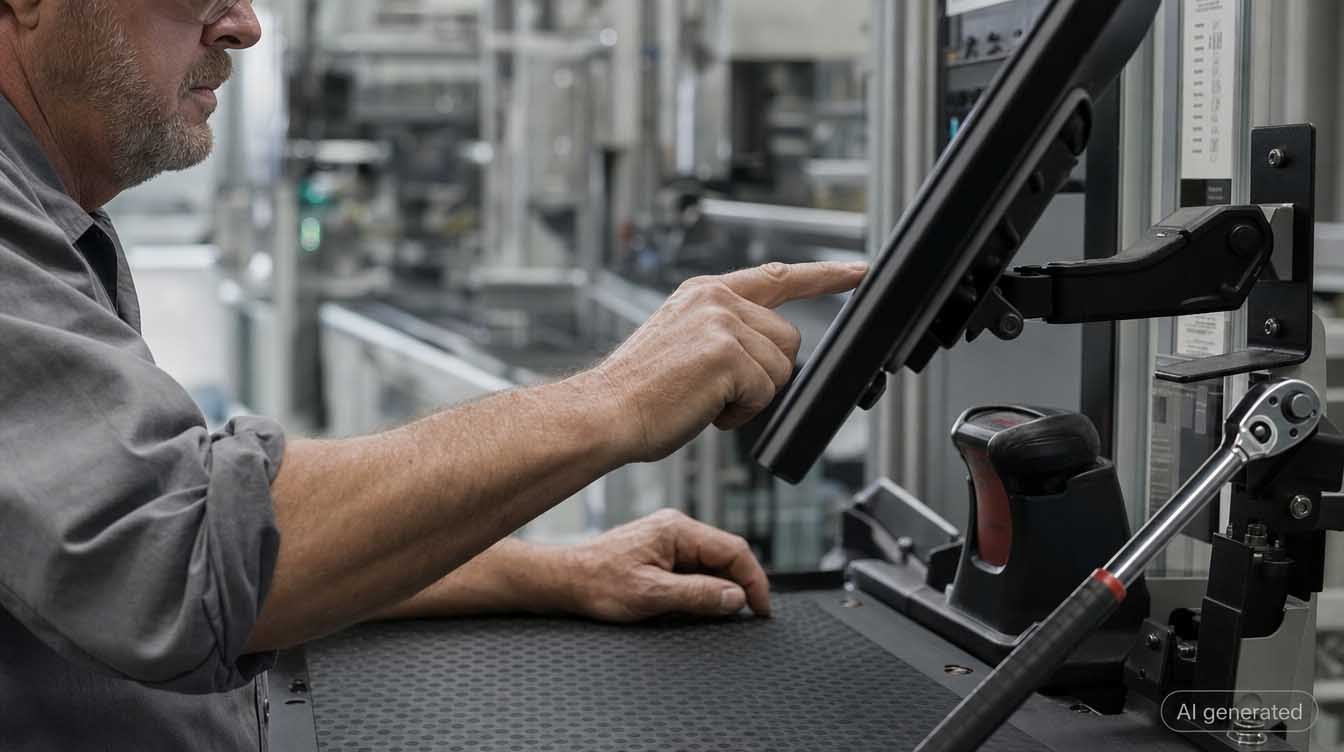

   The next work step is not released until the previous one has been confirmed. This not only makes sequence errors less likely—it eliminates them entirely. For a zero-defect strategy in manual assembly, this is the most powerful single lever.
2. Variant Control Based on the Order
   The sequence of steps is generated at runtime based on the order and configuration. The worker sees only the valid sequence for this specific unit, rather than instructions listing all variants and a selection rule. There is no chance of confusion because the worker never even sees the alternatives.
3. Mandatory Confirmation with Deviation Path
   Every quality-relevant step requires active confirmation. Equally important is the second path: Anyone who cannot confirm must log a deviation, including a photo, free text, and escalation level. Without this path, the mandatory confirmation leads to clicks made merely to comply.
4. Link to Tool and Identification
   The system transfers the parameter set to the screwdriver, press, or testing equipment and records the actual value in the same data record. Scanners verify the component and container against the bill of materials. This provides technical safeguards against parameter and part mix-ups, which are not dependent on organizational rules.

The four principles cover four of the five error classes. The fifth—the omitted inspection—disappears as a separate class as soon as the inspection is integrated as a step in the guided process and is no longer a separate operation. Worker guidance and quality inspection must coincide at this point, rather than existing side by side.

The Most Common Design Flaw in Zero-Defect Programs

It’s called “inspection without interlock”: Many implementations digitize the checklist but leave station release independent of it. The result is a complete log of an unchanged process. If you could change only one thing in an existing installation, make the release contingent on confirmation.

A second effect concerns new employees. Guided workflows significantly shorten the time it takes for employees to become productive, because they no longer have to keep variant rules in their heads. Our analysis of digital worker guidance, error reduction, and onboarding shows exactly how this impacts error rates and onboarding. In completed CSP customer projects, the onboarding time has been reduced by up to 90 percent, and rework has been reduced by up to 75 percent.

Since we often produce high volumes for our orders, we place particular emphasis on process times. That’s why, when selecting an assembly assistance system, it was important to us that it enable us to optimize our setup and production times.

Oliver Hampe, HA-BE Gehäusebau GmbH

Why a Zero-Defect Strategy Requires a Closed-Loop Control System

Operator guidance alone directs the action, but the production line does not learn anything from it. A zero-defect strategy lacks feedback: The information that the same deviation systematically occurs at Station 4 during the night shift must be fed back into the work instructions. This requires four functions based on a common data key.

The closed-loop control system for low-error assembly

1. Order and Configuration
   The order, variant, and bill of materials come from the ERP or MES. The serial number or batch becomes the unique identifier for everything produced thereafter. Our overview of worker assistance systems with MES integration describes the technical details of this connection.
2. Guided Execution
   The station guides the operator step-by-step and variant-by-variant through the process, locks in the sequence, and records each confirmation with a timestamp and user ID.
3. In-Cycle Inspection
   Inspection steps run as part of the process, not alongside it. Tool and process inspections for joining methods such as screwing, riveting, and crimping provide actual values in the same data record as the confirmation.
4. Process Data and Alarms
   The actual values are fed into a process data management system that evaluates trends and deviations and triggers alarms before tolerances are exceeded. Our article on process data management in manufacturing explains how such a data management system is structured.
5. Verification and Feedback
   All data records remain auditable and accessible for the required retention periods. The evaluation results in changes to the sequence of steps, scope of inspection, and parameter set. It is this final link that transforms a program into a control loop.

Everything hinges on the common key. As long as the confirmation is stored in the assistance system, the torque value in the screwdriving control, and the inspection record in a spreadsheet, the process history exists only as a reconstruction task. Every request for information then becomes a special project, and narrowing down the affected scope takes days instead of minutes.

This is where the term “Manufacturing OS” comes into play. The CSP Manufacturing OS is an integrated platform in which process data management, operator guidance, tool and process inspection, and audit-proof archiving function as building blocks of a single system. Unlike with four separately procured solutions, data keys and deadline logic do not first have to be established via separate interfaces. That is where the difference lies—less so in the scope of functionality.

What IATF 16949 and VDI/VDE 2862 require of a guided assembly process

For automotive suppliers, a zero-defect strategy is not optional. Section 10.2.4 of IATF 16949 requires the use of error-proofing methods, i.e., Poka Yoke. This means that prevention is mandated by the standard and cannot be replaced by increased inspection.

Three additional sections directly address the assembly process. Section 8.5.1 governs production control and requires documented information at the workstation. Section 8.5.1.1 requires a control plan that specifies inspection characteristics, inspection equipment, and response plans. Section 8.5.2 requires identification and traceability within the agreed scope. A guided workstation with mandatory confirmation fulfills all three requirements as a byproduct of ongoing operations.

For joining processes, VDI/VDE 2862 Part 1 specifies the requirements. The standard assigns risk classes to bolted joints. For Classes A and B—that is, safety-critical joints—special requirements apply to measuring instruments, inspection frequency, and documentation. VDI/VDE 2645 governs the associated calibration of test equipment. In summary: IATF 16949 requires error-proofing; VDI/VDE 2862 specifies these requirements for bolted joints; and VDI/VDE 2645 ensures the accuracy of the measuring equipment used to provide verification.

However, compliance with the standard does not mean the absence of errors. A plant can meet all requirements and still produce assembly errors because the requirements mandate the existence of control mechanisms and verification, not their effectiveness on a per-cycle basis. Conversely, those who technically lock in preventive measures comply with the standard without any additional effort.

How to Determine the Maturity Level of Your Zero-Defect Strategy

A maturity model helps clarify the discussion. Instead of asking whether a plant has a zero-defect strategy, it clarifies at what level the strategy is technically established. The following four levels can be determined at an assembly station in half an hour.

Maturity Model for the Zero-Defect Strategy in Assembly

Source: CSP Maturity Level Logic, derived from implementation projects in discrete manufacturing

Based on project experience, there are two observations regarding this. First, the leap from Level 2 to Level 3 almost never fails due to technical issues. Most often, there is a lack of willingness to tie the production cycle to a specific condition, and this decision is made by production management, not by IT. Second, plants regularly overestimate their maturity level by one stage because they confuse documentation with management. The test for this is simple: Can a worker leave the station without confirming the inspection step? If so, it is Level 2.

How to Implement a Zero-Defect Program in Four Phases

A zero-defect strategy fails more often due to the order of implementation than to the choice of system. A common mistake is a broad rollout before the effectiveness has been proven. The following sequence has proven effective in implementation projects. The time estimates are based on experience from CSP projects and vary depending on the number of variants and the number of locations.

Four Phases of Implementation

1. Phase 1: Defect Inventory, 4 to 6 weeks
   Map twelve months of error logs to the five error classes and record the location where each error was detected for each class. The result is a ranking based on frequency multiplied by detection location. Skipping this phase will lead to incorrect steps being locked in later.
2. Phase 2: Pilot Station, 6 to 10 weeks
   A workstation with a high number of variations and a documented error history. The goal here is to verify that the interlocked sequence maintains the cycle time—not to create the most visually appealing screen. Track the same four key metrics from the target section before and after the implementation.
3. Phase 3: Integration, 8 to 12 weeks
   Integrate tools, scanners, and testing equipment; map actual values to the common key; configure alarms. It is only at this stage that the difference between Level 3 and Level 4 of the maturity model becomes apparent.
4. Phase 4: Rollout and Routine Operation
   Expand to additional stations and locations; hand over to process planning; incorporate the key performance indicators into the management review; and define the change process for step sequences. Without this final step, the procedure becomes obsolete, and the program reverts to Level 2.

There is one thing this sequence does not achieve: it does not eliminate design-related sources of error. If two components fit mechanically in both directions, even though only one is correct, the solution lies in the design, not in the work instructions. An assistance system can mitigate this issue by indicating the correct orientation and enforcing a scan, but the potential for error remains in the product.

How the Manufacturing OS Supports the Zero-Defect Strategy in Assembly

The Manufacturing OS is an integrated platform for industrial quality assurance. Its four components together form the control loop described above.

The Four Components of the Assembly Control Loop

Source: Product information from CSP Intelligence GmbH

Machine and tool integration is manufacturer-independent and based on open standards. The key derived from the batch or serial number runs through all stages, ensuring that the complete process history of an individual part remains accessible without the need for reconstruction. In the event of a complaint, this determines how precisely the affected scope can be narrowed down.

In practice, companies such as Stadler Rail use CSP solutions to ensure safety-critical assembly processes, while Knorr-Bremse uses them to manage highly varied assembly processes. At HA-BE Gehäusebau, an assembly assistant guides workers through mass production. For more details on the Operator Guidance module, visit the Operator Guidance solutions page; for the Inspection module, visit the Quality Assurance page.

Frequently Asked Questions About the Zero-Defect Strategy in Assembly

What is a zero-defect strategy?

A zero-defect strategy is a quality approach that prevents defects at their source rather than detecting them in downstream inspections. It combines design-based defect prevention, technical safeguards for critical process steps using poka-yoke, and continuous monitoring of actual performance. The goal is a process in which errors are technically impossible.

What are the goals of a zero-defect strategy?

Four objectives can be measured independently of one another: reducing error occurrence at the workstation, moving the point of detection upstream, reducing variation between shifts and locations, and ensuring verifiability without additional effort. The raw error rate alone is an unsuitable metric because it also decreases as inspection standards are tightened.

Is a zero-defect strategy even achievable in assembly?

Complete error-free production across unlimited quantities is a theoretical limit, not an achievable state. What is achievable is the technical elimination of the dominant error classes. Three of the five typical assembly error categories can be completely eliminated through sequence interlocking, variant control based on the order, and mandatory scanning. The remaining residual risk lies primarily in design-related sources of error.

What distinguishes a zero-defect program from a zero-defect strategy?

The strategy describes the goal and the principles, while the program outlines the implementation with specific measures, responsibilities, key performance indicators, and deadlines. In practice, many strategies exist without a corresponding program. This is evident from the fact that no one can specify which station will be interlocked next or which key performance indicator is intended to demonstrate success.

What role does worker supervision play in assembly for the zero-defect strategy?

Worker guidance is where prevention in manual assembly becomes technically effective. It is the interlock—not the display of the work instruction—that makes the difference: the next step is not released until the previous one is confirmed, and the sequence of steps is constructed precisely according to the specific variant of the order. A system that merely displays and logs information improves documentation, not the result.

What requirements does IATF 16949 place on error prevention?

IATF 16949 requires, in Section 10.2.4, the use of error-proofing methods, i.e., Poka Yoke. In addition, Section 8.5.1 governs production control, including documented information at the workstation; Section 8.5.1.1 covers the control plan with inspection criteria and response plans; and Section 8.5.2 addresses identification and traceability. For screw connections, VDI/VDE 2862 Part 1 specifies the requirements by risk class.

How do you measure the success of a zero-defect strategy?

Through four key performance indicators: the percentage of orders that pass through a station without a nonconformity, the percentage of nonconformities detected at the station where they occurred, the variation in these values across shifts and locations, and the time from a request for information to the complete process history of a single part. All four should be measured before the first corrective action is taken.

How long does it take to implement an assembly assistance system?

In CSP projects, experience shows that the process from error inventory to a networked pilot station takes about four to seven months: 4 to 6 weeks for the inventory, 6 to 10 weeks for the pilot, and 8 to 12 weeks for integrating tools, scanners, and inspection equipment. The subsequent rollout scales with the number of stations and the number of variants. As a rule, the most time-consuming part is not the technology itself, but rather clarifying the sequence of steps in process planning.
